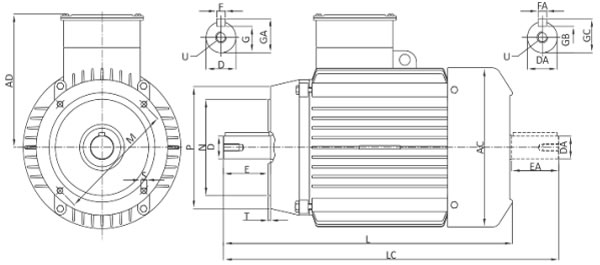

Dimension Table of Face Mounted (B14) Construction
| FRAME SIZE | L | LC | AC | AD | HD | D DA | E EA | F FA | GA GC | G GB | P MAX | M | N | S | T MAX | U | TOL ON D,DA | TOL ON F,FA | TOL ON M | TOL ON N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 63 | 210 | 238 | 115 | 95 | 158 | 11 | 23 | 4 | 12.5 | 8.5 | 90 | 75 | 60 | M5 | 3 | M4 | +.008 +.003 (J6) | +.0 | +.03 | +.012 -.007 (J6) |
| 71 | 240 | 275 | 140 | 105 | 176 | 14 | 30 | 5 | 16 | 11 | 105 | 85 | 70 | M6 | 3.5 | M5 | -.030 (H9) | |||
| 80 | 277 | 322 | 162 | 128 | 161 | 19 | 40 | 6 | 21.5 | 15.5 | 120 | 100 | 80 | M6 | 3.5 | M6 | +.009 -.004 (J6) | |||
| 90S | 312 | 369 | 173 | 135 | 177 | 24 | 50 | 8 | 27 | 20 | 140 | 115 | 95 | M8 | 3.5 | M8 | +.0 -.036 (H9) | +.013 -.009 (J6) | ||
| 90L | 337 | 394 | 173 | 135 | 177 | 24 | 50 | 8 | 27 | 20 | 140 | 115 | 95 | M8 | 3.5 | M8 | ||||
| 100L | 370 | 437 | 195 | 165 | 245 | 28 | 60 | 8 | 31 | 24 | 160 | 130 | 110 | M8 | 4 | M10 | ||||
| 112M | 397 | 463 | 226 | 178 | 285 | 28 | 60 | 8 | 31 | 24 | 160 | 130 | 110 | M8 | 4 | M10 | +.014 -.011 (J6) | |||
| 132S | 450 | 540 | 260 | 198 | 320 | 38 | 80 | 10 | 41 | 33 | 200 | 165 | 130 | M12 | 4 | M12 | +.008 -.002 (K6) | |||
| 132M | 488 | 578 | 260 | 198 | 320 | 38 | 80 | 10 | 41 | 33 | 200 | 165 | 130 | M12 | 4 | M12 |
